The manufacturing landscape for food, beverages, and pharmaceuticals is governed by an uncompromising standard: absolute hygiene. In these critical sectors, the integrity of the product is paramount, demanding that every component involved in fluid transfer meets stringent sanitary specifications. The reliability of this process hinges on specialised equipment, particularly the design and utilisation of the industrial pumps that move delicate or essential media. For these high-stakes applications, an FDA-compliant diaphragm pump is not merely preferred; it is a fundamental requirement for operational viability and consumer safety.

The adoption of dedicated sanitary pumps is essential for manufacturers seeking to eliminate the risks associated with bacterial growth, cross-contamination, and the introduction of foreign materials. This focus drives demand for robust, easily cleanable technology, exemplified by the FDA Diaphragm Pump. Unlike general industrial diaphragm pumps, these specialist units are engineered to support rigorous Clean-In-Place (CIP) procedures, ensuring that the entire fluid pathway can be sanitised thoroughly and reliably. The proper selection of a diaphragm pump thus becomes a critical step in achieving and maintaining compliance, safeguarding reputation, and ensuring product quality from batch to batch. Leading diaphragm pump manufacturers understand this requirement, producing pumps that integrate compliance standards into their core design. Whether driven by air as an air operated diaphragm pump or electrically, these devices represent the necessary convergence of robust engineering and hygienic principles.

Foundational Standards in Hygienic Pumping Compliance

Achieving compliance in hygienic processing requires adhering to universally accepted standards that dictate both the materials used and the final design of the equipment. These regulations exist to provide consumers with absolute confidence in product safety and quality. Here are some of them:

FDA Code of Federal Regulations (CFR) Title 21

The U.S. Food and Drug Administration (FDA) establishes strict guidelines for materials that come into contact with food and pharmaceuticals. CFR Title 21 mandates that materials used in these applications must be non-toxic, chemically inert, non-absorbent, and capable of withstanding repeated exposure to high temperatures and aggressive cleaning chemicals without degradation or leaching. For the FDA Diaphragm Pump, this means components like the diaphragms, valve balls, and pump housing must be constructed from specific materials such as polished stainless steel or approved polymers like PTFE (Teflon) or Santoprene.

Why This is Important: The FDA's focus is on preventing adulteration. By regulating material composition, the agency ensures that the pump itself cannot contaminate the media it is transferring, whether through corrosion, shedding of particulate matter, or the absorption and subsequent release of previous batches’ residues.

3-A Sanitary Standards

Developed by a collective of equipment manufacturers, regulatory sanitarians, and end-users, the 3-A Sanitary Standards focus specifically on the design aspects that enable easy and complete cleaning. 3-A certification prioritises equipment that:

• Can be cleaned: Surfaces must be readily accessible for cleaning.
• Can be inspected: The design must allow for easy inspection to verify cleanliness.
• Can be drained: The system must be fully self-draining to prevent liquid pooling.
• Have Smooth Surfaces: These surfaces must be free of sharp angles or external threads that could collect debris and contaminate the environment.

Why This is Important: 3-A standards are essential for validating the efficacy of Clean-In-Place (CIP) protocols. A pump that is inherently difficult to clean creates areas of refuge for microorganisms, rendering sanitisation procedures ineffective. The quick-knockdown design of many sanitary pumps, including the FDA-compliant double diaphragm pump, allows for rapid disassembly and inspection when necessary.

The Consequences of Non-Compliance

Failure to utilise sanitation-compliant fluid transfer equipment carries severe and multifaceted risks that can cripple a manufacturing operation:

1. Product Contamination and Health Risks: This is the most critical issue. Non-compliance can lead to microbial, chemical, or physical contamination, resulting in potential consumer illness, injury, or, in the case of pharmaceuticals, ineffective medication.
2. Regulatory Action and Fines: Government bodies like the FDA or local food safety authorities can issue immediate cease-and-desist orders, levy massive fines, and seize non-compliant products. These actions lead to costly production downtime and legal expenditure.
3. Widespread Product Recall: A contaminated batch necessitates a product recall, which is prohibitively expensive, involving costs for retrieving the product, disposal, public relations, and legal defence.
4. Reputational Damage: Loss of consumer trust is often irreversible. A single high-profile contamination event can destroy years of brand building and market confidence, fundamentally affecting sales and market share.

For manufacturers using high-performance units like an electric double diaphragm pump or an air powered diaphragm pump for critical transfer steps, ensuring that the model is specifically FDA-rated mitigates this entire spectrum of risk.

Engineered for FDA Compliance

The engineering philosophy behind the FDA Diaphragm Pump starkly contrasts with general-purpose pneumatic diaphragm pump design. The goal is the total elimination of harbour points for bacteria.

• Surface Finish: The interior of an FDA-compliant pump features polished surfaces, often meeting a specific Ra (Roughness average) finish measurement (e.g., 0.8μm or better). This super-smooth finish prevents microbes and product residues from adhering to the metal, making the pump inherently easier to clean during CIP.
• Crevice-Free Construction: Traditional industrial pumps often use bolted connections and complex internal geometry that create tiny pockets and crevices. The hygienic design of the FDA model eliminates these by using clamps, seamless welds, and specially shaped components that present a continuous, smooth flow path.
• Material Certification: Every material in the product path—from the pump casing to the O-rings—must be traceable and certified to meet FDA requirements. This is a level of documentation and quality control not typically found in standard units like a basic 2 inch diaphragm pump used for non-sanitary applications.
• Can be Drained Properly: The pump housing and port orientations are designed to ensure complete evacuation of the process fluid and cleaning solutions. There are no low points or horizontal surfaces where fluid can pool, a feature vital for aseptic processing.

Clean-In-Place (CIP) Procedures

Clean-In-Place (CIP) refers to the automated cleaning and disinfection of fluid processing lines without the need for disassembly. It is a cornerstone of modern hygienic manufacturing. The pump's role in this system is dual: it must be easy to clean and it must actively facilitate the CIP cycle.

The CIP Process

A typical CIP cycle involves steps which are often automated:

1. Pre-Rinse: A cold or ambient water flush to remove large and loose soil particles.
2. Detergent Wash: Circulation of a heated, caustic (alkaline) or acidic detergent solution to dissolve organic or mineral soils. The air operated double diaphragm pump is ideally suited here due to its capacity to handle aggressive chemicals safely.
3. Intermediate Rinse: A water rinse to flush out the detergent solution.
4. Sanitisation: Circulation of a chemical sanitiser (e.g., peracetic acid, chlorine-based solution) or a high-temperature water rinse (thermal sanitisation) to destroy residual microorganisms.
5. Final Rinse: A final rinse, often with purified or sterile water, to remove the sanitiser.

The FDA Diaphragm Pump's Role in CIP

The FDA Diaphragm Pump is critical during the CIP cycle because it is often the device used to pump the cleaning and sanitising solutions through the system.

• Pumping Aggressive Chemicals: The robust, chemically resistant materials (PTFE) used in the sanitary diaphragms are essential for safely handling concentrated caustic or acidic detergents, a requirement that would quickly degrade non-compliant elastomers.
• Maintaining Flow Dynamics: The pneumatic diaphragm pump, powered by compressed air, can adjust its flow rate and pressure to ensure the cleaning solutions achieve the necessary turbulence (known as impingement) to scour all internal surfaces effectively. Without adequate flow velocity, cleaning may not be completed.
• No Mechanical Seals: Unlike some centrifugal pumps, the hermetically sealed nature of the diaphragm pump means there are no rotating mechanical seals, which are notorious for being difficult to clean and maintaining as a primary source of microbial infestation.

Sanitary vs. General Industrial Fluid Management

The differences between a hygienic fluid transfer system and a general industrial one go beyond merely the cost of a pump; they involve entirely distinct philosophies of operation, documentation, and risk tolerance.

General Industrial Fluid Management

• Primary Objective: Focused on efficiency, durability, and cost-effectiveness.
• Equipment Design: Uses robust, often cast or bolted construction with complex geometry that may create crevices.
• Material Requirements: Selection is based on chemical compatibility and abrasion resistance. Documentation is typically internal.
• Cleaning Protocol: Involves manual cleaning (COP) or simple flushing, focused only on the removal of major contaminants.
• Pump Examples: Standard 2 inch diaphragm pump or rugged aluminium air diaphragm pump for corrosive slurries.
• Documentation: Consists of technical manuals and internal maintenance logs.

Sanitary Fluid Management (FDA/3-A)

• Primary Objective: Centred on product safety, regulatory compliance, and sterility.
• Equipment Design: Features polished internal surfaces, self-draining capabilities, and quick-knockdown/clamp connections for crevice-free operation.
• Material Requirements: Requires non-toxic, non-absorbent materials (such as PTFE, 316L SS) supported by external certification (FDA, USP Class VI).
• Cleaning Protocol: Utilises automated, validated Clean-In-Place (CIP) or Sterilise-In-Place (SIP) procedures, focused on the destruction of microorganisms.

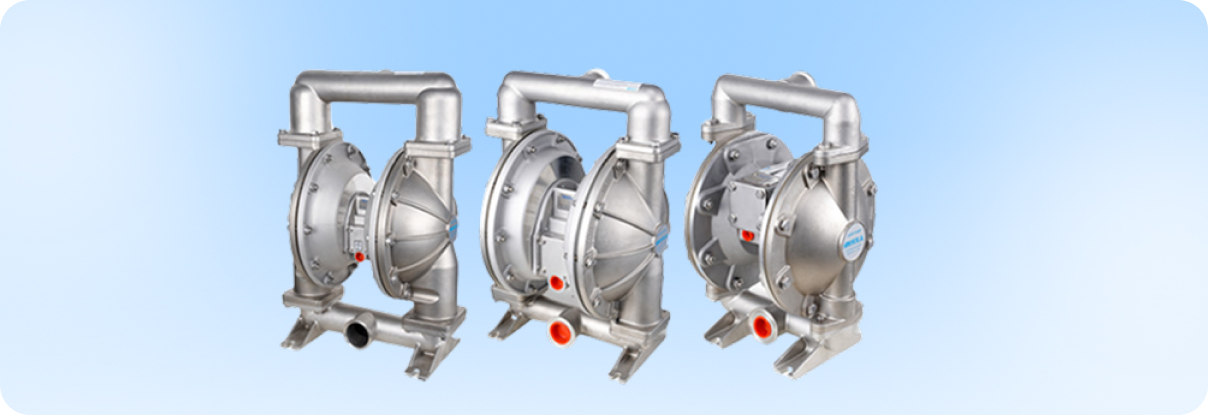

• Pump Examples: The FDA Diaphragm Pump, often a stainless steel air operated double diaphragm pump with specific surface finish.
• Documentation: Requires full material traceability, cleaning validation reports, and diaphragm pump manufacturer test certificates.

The fundamental distinction lies in risk. General industrial practice manages risks like equipment wear and operational loss. Sanitary practice manages the existential risk of public health failure and regulatory shutdown. This is why investing in an engineered solution like the FDA Diaphragm Pump is necessary—it replaces general utility with guaranteed process assurance.

Ovell Pump For Sanitary Fluid Management

Ovell Pump is committed to delivering advanced fluid management solutions for the most demanding applications, ranging from chemical transfer to sterile media handling. Our portfolio includes a comprehensive selection of standard pumps, such as the Plastic, Stainless Steel, and Aluminium Air Diaphragm Pumps, designed for rugged industrial diaphragm pumps use across various sectors. Furthermore, Ovell Pump specialises in niche and high-performance units, including the Pneumatic Powder Pump, the Electric Diaphragm Pump, the Flap Valve Diaphragm Pump, and precise solutions like the diaphragm metering pump. The Ovell FDA Diaphragm Pump specifically addresses the non-negotiable compliance requirements of the Food & Beverage and Pharmaceutical industries. This specialty pump is engineered to the highest hygienic standards, facilitating effective sanitation and eliminating areas where contaminants could harbour, proving its value as a crucial component in sanitary process lines.

Conclusion

In a global market where safety and quality are heavily scrutinised, the role of a specialised FDA Diaphragm Pump in achieving and maintaining compliance cannot be overstated. By focusing on design integrity, validated material composition, and seamless integration into automated cleaning cycles, diaphragm pump manufacturers like Ovell Pump provide the critical link that protects both the product and the brand reputation. This adherence to hygienic standards ensures that complex filling and batching processes operate with maximum reliability and safety.
