The fluid management systems in modern industrial operations, whether powered by a pneumatic diaphragm pump or another pump type, are intricate and often subjected to significant stress. A common but frequently underestimated source of this stress is pulsation—the cyclical surge and drop in pressure that occurs with every stroke of a reciprocating pump. These pressure fluctuations can lead to a host of operational problems, from equipment damage to reduced process efficiency. To mitigate these issues, a specialised device is required.

The diaphragm pulse dampener is an essential component designed to absorb and smooth out these pressure spikes, creating a steady, controlled flow. This simple yet critical technology improves the performance and longevity of the entire system. Ovell Pump, a trusted diaphragm pump manufacturer, understands the fundamental need for system stability and has engineered its pulse dampeners to work seamlessly with its range of industrial diaphragm pumps. This guide will explore the features and benefits of these vital devices and their role in optimising fluid handling.

Why Pressure Pulsation Can be a Problem

Pressure pulsation is an inherent characteristic of positive displacement pumps, including the double diaphragm pump, where fluid is moved in distinct, repeated cycles. Each stroke of the diaphragm creates a pressure wave, resulting in a turbulent flow rather than a smooth, continuous one. If left unmanaged, these fluctuations can have far-reaching negative consequences for the entire system.

• ‍Harmful Stress and Water Hammer: Pulsations create a cyclical stress on the entire pipeline system. This constant pressure variation can lead to material fatigue in pipes, valves, and joints, accelerating wear and increasing the risk of leaks. In more severe cases, sudden pressure spikes can cause a phenomenon known as water hammer, a powerful shock wave that can lead to catastrophic damage to equipment and pipes.‍
• Reduced Equipment Lifespan: The constant pressure fluctuations put immense strain on the pump itself, especially on its diaphragms and valves. Over time, this stress can lead to premature failure of internal components, resulting in costly maintenance and unexpected downtime. A pump forced to work against unstable pressure is an inefficient one.‍
• Inaccurate Dosing and Measurement: In processes that require precise fluid delivery, such as chemical dosing or batching, pressure fluctuations can compromise accuracy. The pulsating flow makes it difficult to maintain a consistent flow rate, which can lead to inaccuracies in the final product. For a diaphragm metering pump, where precision is paramount, a pulse dampener is not just a benefit—it is a necessity.‍
• Increased Noise and Vibration: The physical impact of pressure pulsations is often felt and heard as noise and vibration. This not only creates an uncomfortable working environment but also contributes to mechanical stress and potential damage to mounting hardware and surrounding equipment.

The Advantages of Ovell's Pulse Dampener

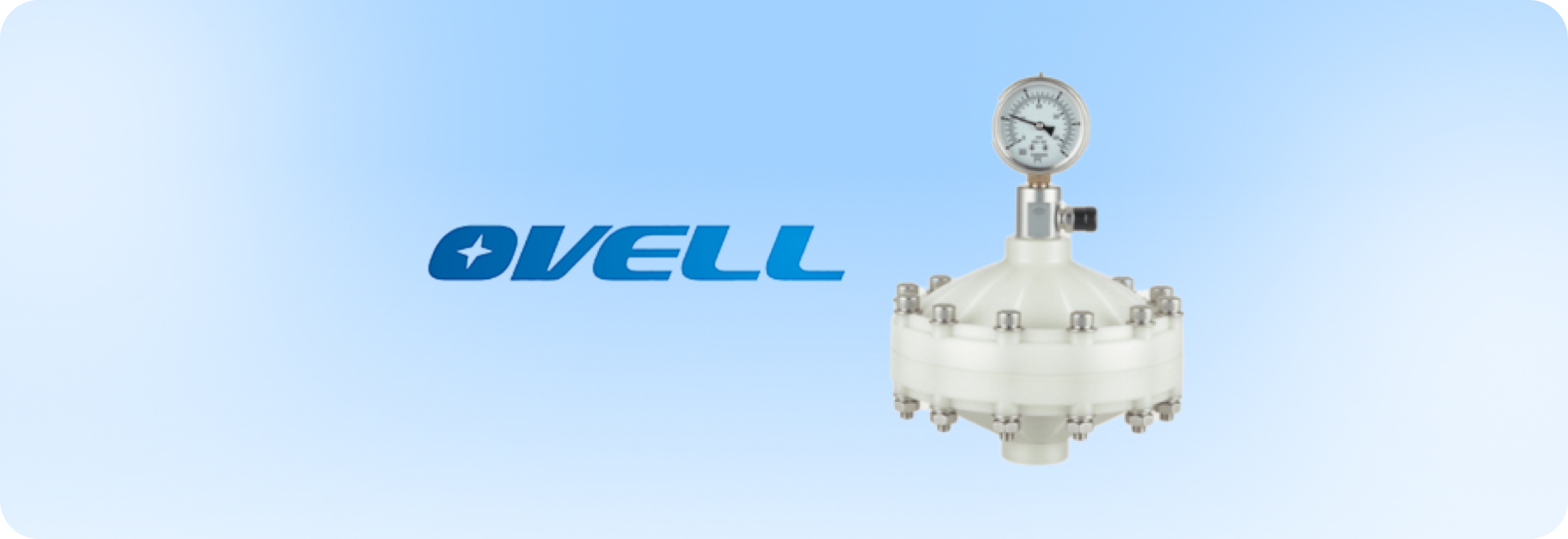

The Ovell diaphragm pulse dampener provides a proactive solution to these problems by absorbing the energy from pressure spikes and releasing it during the pressure drops. This creates a balanced, consistent flow. The device consists of a housing with a flexible diaphragm, and it is pre-charged with compressed air or an inert gas to a pressure that matches the pump's system pressure. This design allows it to work in concert with the pumping action to create a steady fluid stream.

• ‍Reduces Flow Rate Fluctuation: The primary function of a pulse dampener is to smooth the flow. By cushioning the pressure peaks, the dampener stabilises the flow rate, ensuring a steady delivery of fluid. This is vital for processes that rely on consistent flow for quality control.‍
• Creates an Optimised Working Environment for Pumps: By maintaining a stable pressure, the dampener reduces the workload on the pump. This allows the pump to operate more smoothly and efficiently, extending the life of key components and reducing the frequency of repairs. This benefit applies to all types of pumps, from a large 2 inch diaphragm pump to a compact air operated diaphragm pump.‍
• Protects Pipelines and Equipment: A consistent, pulse-free flow eliminates the physical shock to the pipeline system. This protects pipes, valves, joints, and flow meters from the damaging effects of water hammer and pressure spikes. The result is a more reliable system with fewer leaks and a lower risk of unexpected failures.‍
• Allows for Smaller Pipe Diameters and Reduces Costs: When designing a fluid handling system without a pulse dampener, engineers must often use larger, more robust pipes to handle potential pressure spikes. By stabilising the pressure, a pulse dampener allows the system to utilise smaller diameter pipelines. This not only reduces the upfront cost of materials but also lowers installation costs.‍
• Reduces System Energy Consumption: An unsteady flow forces a pump to work harder to overcome pressure variations. By creating a stable environment, a pulse dampener helps the pump run more efficiently, reducing the energy required to transfer the same volume of fluid. This contributes to lower operational costs and a more sustainable process.‍
• Synergy with Back Pressure Valves: For applications that demand near-zero pressure fluctuation, a pulse dampener is used in conjunction with a back pressure valve. The dampener handles the pressure surges, while the back pressure valve maintains a consistent pressure against the pump's outlet, resulting in a fluid stream that is almost completely free of pulsation.

Applications and Industries

Ovell's diaphragm pulse dampeners are versatile and can be applied in a wide range of industries where fluid control and system stability are essential. They are designed to be compatible with all of Ovell's diaphragm pump models, including the electric double diaphragm pump and the chemical diaphragm pump, as well as pumps from other diaphragm pump manufacturers.

• ‍Chemical Processing: In chemical plants, a pulse dampener is used to ensure precise and safe fluid transfer. For example, when dosing a catalyst into a reactor, accurate delivery is critical for the chemical reaction to proceed correctly. A diaphragm metering pump paired with a pulse dampener ensures that each dose is exact, preventing product inconsistencies and waste.‍
• Food and Beverage: The food industry requires hygienic and consistent fluid transfer for bottling, filling, and blending processes. The pulsation from a pump can cause splashing and foaming during filling, leading to product loss and a messy production line. A diaphragm pulse dampener ensures a smooth, continuous flow, providing precise filling and maintaining product quality.‍
• Wastewater Treatment: Wastewater contains a variety of abrasive slurries and suspended solids. Pumping these fluids can cause significant strain on the system. The pulsation created by an air powered diaphragm pump can aggravate the situation, leading to increased wear on pipes and valves. A pulse dampener absorbs this shock, extending the life of the entire system and ensuring operational reliability.‍
• Pharmaceuticals: In the pharmaceutical industry, cleanliness and precision are non-negotiable. The transfer of high-purity fluids and active ingredients must be meticulously controlled. A diaphragm pulse dampener on an electric diaphragm pump ensures that fluids are transferred smoothly and without fluctuation, maintaining the sterility and integrity of the product and preventing air pockets or contamination.

The Ovell Difference

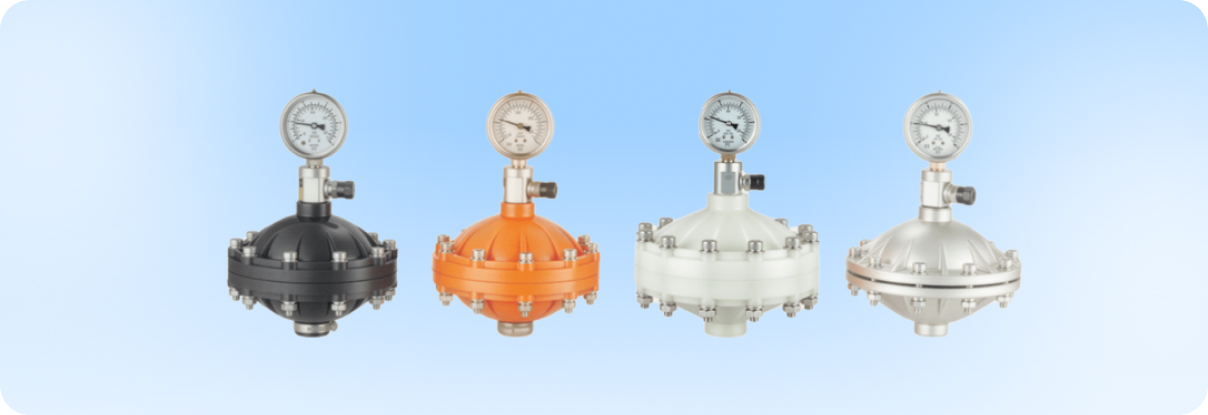

Ovell Pump, as a trusted diaphragm pump manufacturer, provides solutions that are not merely add-ons but are engineered for system optimisation. The pulse dampeners are designed with the same commitment to durability and quality as their pumps. Made from corrosion-resistant materials, they are built to withstand the harshest chemical environments.

This synergy between Ovell's air operated double diaphragm pump models and their dampeners ensures that businesses can achieve the highest levels of safety and efficiency. By investing in a comprehensive Ovell solution, companies can protect their assets, reduce energy consumption, and ensure a more stable and reliable fluid handling process. This commitment to an integrated approach distinguishes Ovell as a partner in optimising industrial operations.

Conclusion

Pulsation is a pervasive challenge in fluid handling, but it is one that can be effectively managed with the right equipment. The diaphragm pulse dampener is a vital component that provides stability, protects valuable assets, and enhances the overall efficiency of a system. By reducing pressure fluctuations, this device ensures that pumps, pipelines, and sensitive instruments can perform at their best. Ovell’s range of high-quality dampeners, designed to work seamlessly with their diaphragm pump models, provides a clear pathway to achieving a more reliable, cost-effective, and safe operation. Ultimately, making the choice to invest in a pulse dampener is a strategic decision that safeguards the entire fluid management process.

‍
