OVELL 1 Inch PP AODD Pump Used in Electroplating Chemical Dosing System

Electroplating processes require reliable chemical transfer equipment to maintain stable production quality. During surface treatment operations, different chemical solutions need to be accurately transferred and replenished into plating tanks.

The OVELL A10PATTP and A10PPTTP 1 inch Air Operated Double Diaphragm Pumps are designed for electroplating chemical dosing applications. With polypropylene (PP) pump bodies and TF/PTFE diaphragms, these pumps provide excellent corrosion resistance and reliable performance when handling aggressive chemicals.

Application: Chemical Transfer in Electroplating Factory

The application shown below is from an electroplating factory where OVELL plastic AODD pumps are installed for chemical dosing and transfer.

The pump transfers chemical liquids from storage tanks to the electroplating process system, providing stable and safe chemical delivery.

Common electroplating chemicals include:

• Acid solutions
• Alkaline cleaning solutions
• Electroplating additives
• Surface treatment chemicals
• Process bath replenishment chemicals

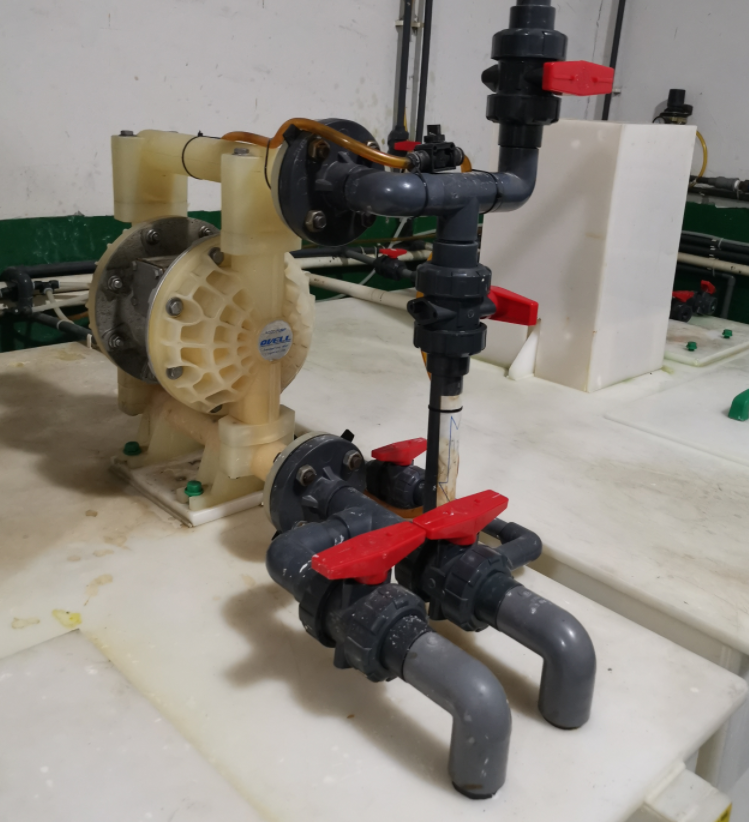

Installation Example of OVELL A10 Series Plastic AODD Pump

The following installation shows the OVELL 1 inch PP AODD pump connected with chemical pipelines in an electroplating system.

The compact design of the A10 series allows easy installation in chemical processing equipment where space is limited.

Why Choose PP AODD Pumps for Electroplating Applications?

1. Excellent Corrosion Resistance

The wetted parts are manufactured from polypropylene (PP), which provides excellent resistance against many corrosive chemical liquids used in electroplating industries.

The TF/PTFE diaphragm offers additional chemical compatibility and extends service life under harsh operating conditions.

2. Safe Air-Driven Operation

Unlike electric pumps, AODD pumps use compressed air as the driving source. This eliminates electrical components near chemical liquids and improves operational safety.

3. Dry Running Capability

During chemical transfer processes, liquid levels may change. OVELL diaphragm pumps can run dry without damage, reducing maintenance requirements.

4. Adjustable Flow Control

The flow rate can be easily adjusted by controlling compressed air pressure, allowing flexible chemical dosing control.

OVELL A10 Series 1 Inch Plastic AODD Pump Features

• Model: A10PATTP / A10PPTTP
• Size: 1 inch
• Pump Body Material: Polypropylene (PP)
• Diaphragm Material: TF/PTFE
• Maximum Pressure: 8 bar (116 psi)
• Self-priming design
• Dry running capability
• Suitable for corrosive chemical transfer

Explore OVELL Plastic AODD Pumps

OVELL provides a complete range of plastic air operated double diaphragm pumps for chemical, water treatment, electroplating and industrial applications.

Learn more about OVELL plastic AODD pumps:

Plastic AODD Pump Series

Reliable Pump Solution for Electroplating Industry

With excellent chemical resistance, simple maintenance and reliable operation, OVELL PP AODD pumps are an ideal solution for electroplating chemical dosing and transfer systems.

OVELL continues to provide professional diaphragm pump solutions for global chemical processing industries.
