Case Study: 1-Inch Aluminum Diaphragm Pump in Ink Manufacturing

Introduction

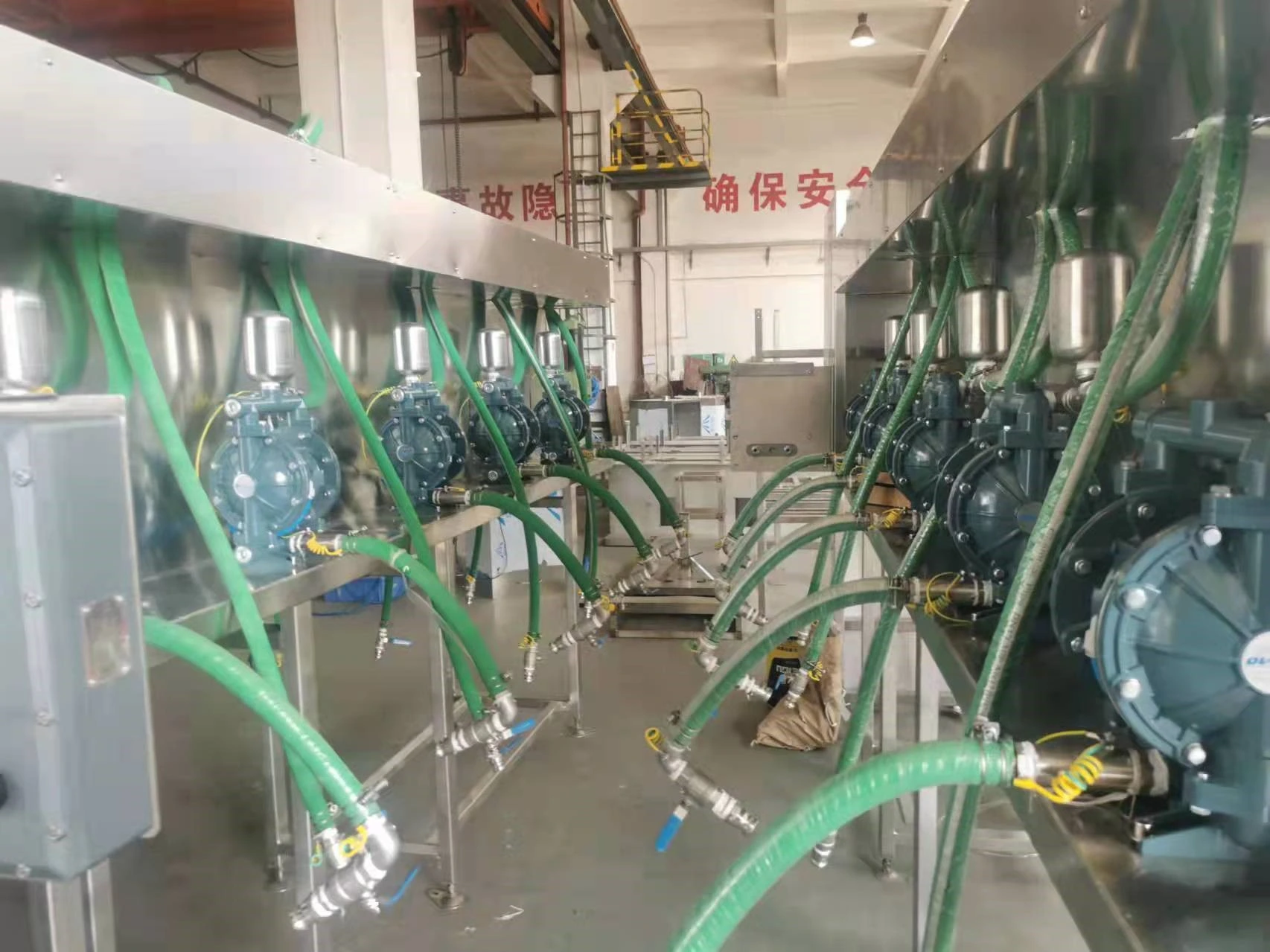

Diaphragm pumps are used for fluid transfer in many industries, including ink manufacturing. This application overview describes an OVELL 1-inch aluminum diaphragm pump in an ink production environment and explains the operating factors that affect pump selection and performance.

Fluid-Handling Challenges in Ink Manufacturing

Ink formulations may contain solvents, pigments, resins and abrasive particles. Viscosity and chemical composition vary between products, so the complete wetted assembly must be checked against the actual formulation.

• Material compatibility: Confirm compatibility of the body, diaphragms, valve balls, seats and seals with the ink and cleaning fluids at operating temperature.
• Flow requirements: Assess required flow at the actual discharge pressure, together with suction conditions and viscosity.
• Solids and wear: Check particle size, concentration and abrasiveness against the pump's capabilities.
• Operating safety: Evaluate flammable-fluid and hazardous-area requirements before selecting the configuration.
• Maintenance: Allow access for cleaning, inspection and replacement of wear parts.

Selecting an Aluminum Diaphragm Pump

A 1-inch aluminum diaphragm pump can be considered where its wetted materials are compatible with the ink formulation. Aluminum is not suitable for every ink, solvent or cleaning chemical; compatibility must be confirmed for the complete operating and cleaning cycle.

Self-Priming and Dry-Run Capability

AODD pumps can offer self-priming and dry-run capability, subject to the specific model and operating conditions. Suction lift and startup performance depend on factors such as viscosity, suction-line losses and valve condition. Avoid unnecessary dry running and follow the pump's operating instructions.

Air-Operated Drive and Safety

A standard pneumatic drive does not require an electric motor at the pump. This does not make every configuration suitable for flammable liquids or classified hazardous areas. Confirm the required certification, conductive construction where applicable, grounding, bonding and ventilation for the complete installation.

Maintenance and Product Quality

Diaphragms, check valves, seals and the air distribution system still require inspection and maintenance. Cleaning procedures should prevent pigment buildup and cross-contamination between ink batches. A diaphragm failure can allow pumped liquid into the air side, so exhaust routing and suitable containment should form part of the installation review.

Commissioning and Performance Checks

Before placing the pump into service, confirm material compatibility, air supply, suction conditions and discharge piping. Start at an appropriate air pressure and adjust to the required duty. AODD output is pulsating; where the process requires smoother delivery, evaluate a suitable pulsation dampener and system controls.

• Measure delivered flow at the actual process pressure and ink viscosity.
• Check for air leaks, liquid leaks, irregular cycling and restrictions in the suction line.
• Monitor ink quality and verify cleaning effectiveness between batches.
• Record wear-part replacement intervals and maintenance downtime.

Assessing Energy Use and Operating Cost

Compressed air has an energy cost. Comparing an AODD pump with an electric pump requires equivalent operating duties and consideration of compressor efficiency, air pressure, air consumption, leaks and operating time. Air operation alone does not establish lower energy use or lower total cost.

Any claimed improvement in downtime, production output or cost should be supported by a defined baseline and site operating records. Results depend on the formulation, installation and maintenance practices.

Conclusion

An OVELL 1-inch aluminum diaphragm pump may be an appropriate option for ink transfer when its configuration matches the fluid and process requirements. Correct material selection, commissioning and maintenance are central to reliable operation.

Discuss the ink formulation, cleaning chemicals, required flow, pressure and site conditions with OVELL before final selection. Visit OVELL Pump for more information.
